How to Pair Motorola WM500 Bluetooth Speaker-Mic and TLK 100

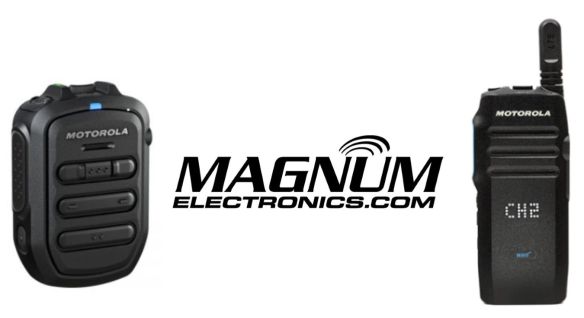

Mootorola PMMN4127 WM500 WRSM AND TLK100
1: Turn the WM500 ON. Using your smartphone find the friendly name of the WM500 as it appears in the list of Bluetooth available devices.  You will need this later.
2: Log in to WAVE dashboard
3: Click on WAVE Devices
4: Select the TLK 100 you want to add the WM500 WRSMActions Dropdown Menu
5: Under the drop-down menu in the upper right corner “Actions”, choose “Bluetooth Accessories”
6: Confirmation window will appear, Click “OK”
7: Using the proper friendly WM500 name as detailed in step 1, enter that name into the Friendly Name field, leave PIN blank.
8: Click “Save”
Enter WM500 Friendly Name
9.  Reboot your TLK 100 radio and give the portal a couple minutes to update your radio.
10. Power ON your WM500 by pressing power button and PTT. Mic will say searching for a host and AUTOMATICALLY send its MAC address. PAIRED

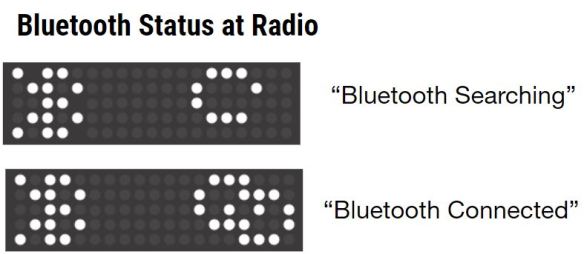

Bluetooth Searching and Paired Icons

How to Clear TLK 100 Bluetooth Pairing

  1. Press Top Button (i) to navigate to view the Bluetooth Status information
  2. Press volume +/- to cycle through the list
  3. To clear a pairing, long press the side button while on the device name “friendly name”.

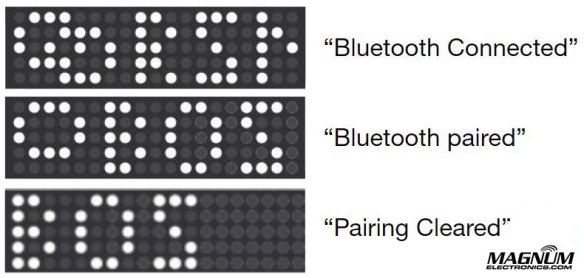

Icons for Connected, Paired, Cleared
